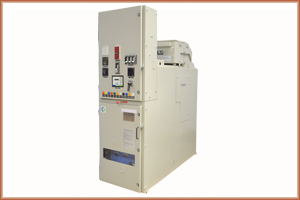

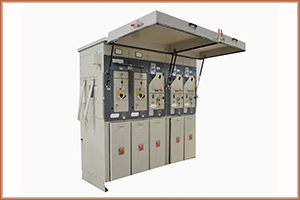

Vacuum Circuit Breaker (VCB Panels)

Electrical Overhead Corporation offers a wide range of high-performance Vacuum Circuit Breakers (VCB Panels) designed to ensure reliable protection and efficient operation of electrical distribution systems. Available across Ahmedabad, Gujarat, and throughout India, these breakers are suitable for both low-current applications and high-voltage power networks.


Vacuum Circuit Breakers function as an advanced Over Current Protection Device, automatically interrupting power supply in case of faults, thereby safeguarding equipment and ensuring system stability.



Key Features of Vacuum Circuit Breaker

  • High reliability with superior arc quenching using vacuum technology
  • Suitable for both low-current and high-voltage applications
  • Compact design with minimal maintenance requirements
  • Fast fault interruption ensuring enhanced safety
  • Long operational and mechanical life
  • Environment-friendly insulation medium (vacuum)
  • Efficient performance in diverse electrical conditions
  • Robust construction for industrial and utility use


Vacuum Circuit Breaker Applications

  • Power distribution systems
  • Industrial electrical networks
  • Commercial and residential complexes
  • Substations and switchgear systems
  • Utility power transmission lines
  • Protection of transformers, generators, and feeders
  • Infrastructure projects and smart grid systems


Technical Specifications of VCB Panel

  • Voltage Range: Up to 36 kV
  • Rated Frequency: 50/60 Hz
  • Rated Current: Up to 2500 A
  • Breaking Capacity: Up to 40 kA
  • Insulation Medium: Vacuum
  • Operating Mechanism: Spring-operated / Motor-operated
  • Mechanical Life: 10,000+ operations
  • Application Type: Indoor / Outdoor (based on configuration)
